Three-Strip Attaching Multi Needle Sewing Machine

  • Buy it now
Choose model

Choose Model

C007K-C13
ModelASV-ATS100A
Collocation Machine HeadSIRUBA VC008-06064P/VPL
Sewing SpeedMax 2000 SPM
Needle TypeUO×113GS #11
Available Width Of Stitching Platform440mm
Stitch Length6.4mm
Sewing Pattern

Adjustable

Air Consumption40L/min
Air Pressure0.5 Mpa
Dimensions(W)1200×(D)900×(H)1900mm ( With table and thread stand )
VoltageSingle Phase AC200~240V 50/60Hz
Production CapacityCloth length:600mm、Stitch pitch: 2mm、Sewing speed: 1500 SPM、Output: 3 pcs/min

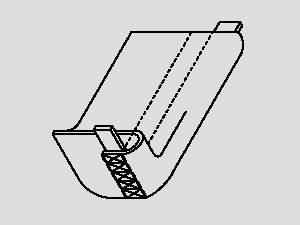

Custom-designed presser foot for Adidas 3-stripe sewing. Puckering free and adjustable.

Dual-sensor control to reduce material waste and save cutting/collecting time.

Minimum finished length:150mm.

Stripe feeding controlled by individual motors for a better feeding performance.
