| Model | ABF100J | ABF100B |
| Apply For | Juki LK-1903A/ LK-1903AN Juki LK-1903B/ LK-1903BN |
Brother 438FX |
| Rising Amount of Clamp | Maximum:13mm | |
| Feeding Time | 0.35~0.5 Sec. | |
| Button | Type: Circle Flat Button Size: Φ8~26mm ※Ø10mm is special specification, need to replace standard parts. |
|
| Button Hole | Standard: 2&4 Holes Option: 3 Holes | |
| Thickness of Button | 1.5~3.5mm | |
| Air Consumption | 20 L/min | |
| Air Pressure | 0.5 MPa | |
| Power Supply | single-phase AC 200~240V 50/60Hz | |
| Dimensions | 440(W)x560(D)x280(H)mm | |
Remark :
Standard : Professional table, All Set of Button Presser Foot ,Small/Big Button Serrarted Plate and Bottom Plate, 12 Sets of Standard Button Carrier.
Option : 3-Holed of Button Carrier,Button Spacer,Button Spacer with Laser Light.
*The definition of Button Size:
Extra small button size is Φ8~10mm, small button size is Φ10~20mm, and large button size is Φ20 ~ 26 mm. Basically, Button clamp of machine head is applied for
Φ8~26mm, but that sewing extra/ large button size are depend on its thickness and convexity.
**Suggestion of selecting the serrated plate
| Button | Size: Φ8~16mm | Size: Φ16~25mm |
| The small serrated plate | The Big serrated plate |
Features
Button sewing machine with automatic button feeder enhances 300% efficiency of button sewing.
Cycle Time: 2.2 Sec./Button; 13,090 Buttons/8 Hr
PANEL
User friendly interface, all sewing parameters are clearly shown.
SENSOR SIGNAL DETECT
Checking the sensors detecting by A02 function of operation panel.
FLIP MECHANISM
Flip mechanism enhance the accuracy of ø16mm up button by auto air-blow.
SMART SENSOR OF BUTTON CLAMP
Button clamp can detect the button position and avoid sewing without button.
BUTTON CHANNEL ADJUSTMENT
Channel adjustment is controlled by stepping motor accurately .
DISCHARGING
Press the key and then remove all the buttons in the channel.
ELECTRONIC AUTOMATIC MEASUREMENT OF BUTTON SIZE
Accurate, Ultrafast, adjusting different button in a short time.
BUTTON CLAMP OF MACHINE HEAD
Button clamp is suitable for variety
button size, the clamp can be used
in different button size and no further adjustment needed.
BUTTON CARRIER MODULE
Modularized button carrier is for
different button size and replacement.
ASP-ABF100J
ABF100 Parameter Setting

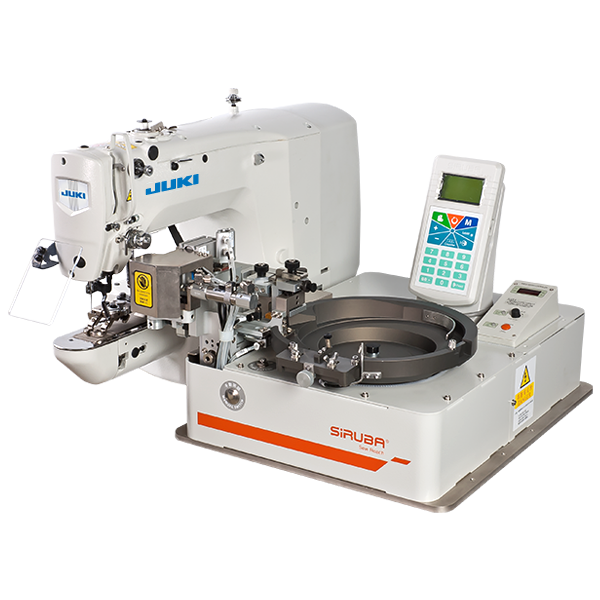

ABF100-J Installation in LK-1903

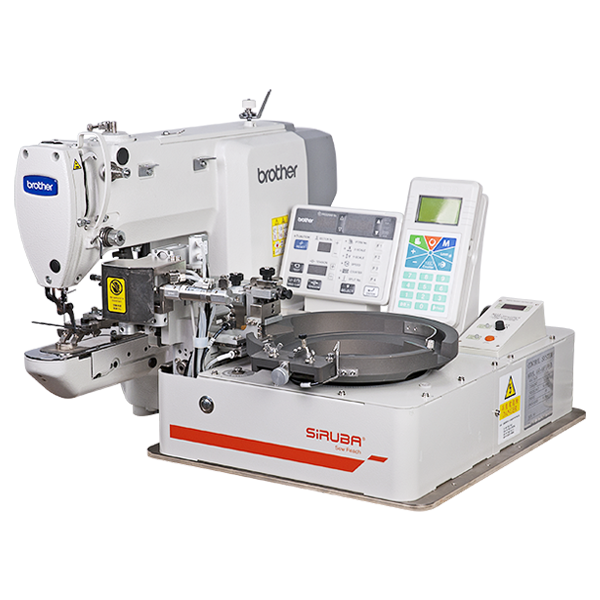

ABF100-B Installation in BE-438
Button Carrier Specification
| Codes of Parts | X＋0.05－0.05 | D＋0.05－0.05 | Button Holes |
| ABF118 | 2.2 | 1 | 4 |
| ABF119 | 2.2 | 1 | 2 |
| ABF120 | 2.4 | 1.2 | 4 |
| ABF121 | 2.4 | 1.2 | 2 |
| ABF122 | 2.8 | 1.2 | 4 |
| ABF123 | 2.8 | 1.2 | 2 |
| ABF124 | 3.2 | 1.2 | 4 |
| ABF125 | 3.2 | 1.2 | 2 |
| ABF126 | 3.6 | 1.2 | 4 |
| ABF127 | 3.6 | 1.2 | 2 |
| ABF269 | 2.6 | 1.2 | 4 |
| ABF270 | 2.6 | 1.2 | 2 |

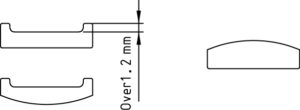

Button Shape
| Available Shape of Button | Unavailable Shape of Button |
 |
 |
| The two sides of the button must be clearly different to distinguish the front and back (There must be a gap of more than 1.2mm between the concave surface and the convex surface) |
Machine can’t work if one side of the button is identical to the other. |
