C007KP - SiRUBA Sewing Machine

C007KP

Ultra High Speed Cylinder Bed Interlock Sewing Machine

C007KP Parts list

C007KP Attachment parts list

C007KP Instuction book & Part list

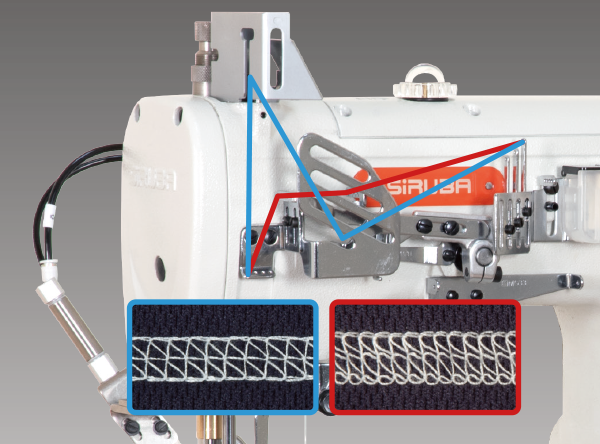

Dual Thread Take-up Mechanism

The brand new design of dual thread take-up lever thread tension combination is ideal for both heavy and light fabric. Sewing applicable range is wider and the applicability is higher.

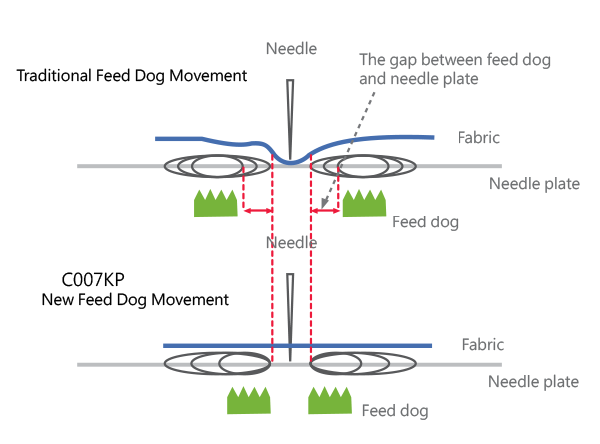

Brand New Differential Feed Dog Driving Design

[Patent] The front and rear feed dog move elliptically, and centrically, a direct extension from needle hole, thus enable sewing material to get precise and stable feeding.Therefore, the sewing quality will not be affected by the clearance between front and rear feed dog which is resulted from the cross seam or differential action.

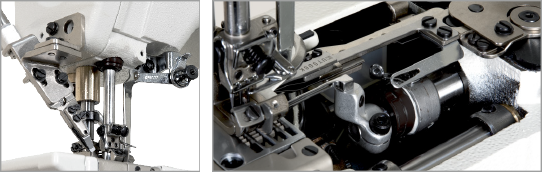

New Oil Sealing Technology

New oil sealing structure used on needle bar and looper mechanism can efficiently avoid oil splash. New wear-resistant material also enhances performance and durability.

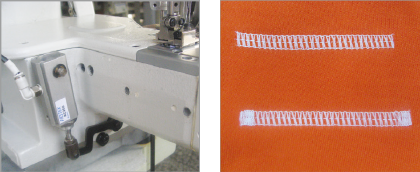

Condense Stitching Device

By reducing the strokes of feed dog, at the beginning and the end of sewing, condense stitching reinforces the stitches.This enhances the sewing sturdiness and quality.Basic model is controlled by pedal. Electric and pneumatic controls are optional.

The Recessed Machine Bed
With the recessed machine bed, sewing material comes closer to the needle hole, thus provides more precise easier, and smoother sewing.

New-Designed Top and Under Trimmer
The new-designed pneumatic, electric top & under knife combination have fast, stable and precise. Trims thread neatly.Handy operation, easy to adjust.

Recessed Cylinder Bed
The recessed cylinder bed on the front cover is shortened. The short cylinder has superior operating performance, which can be applied to the extensive covering seam. Hemming or wrapping can be sewed just by increasing the extended cover.

Brand New Design Upper Thread Gripper
The newly designed upper thread gripper provides fast, precise movement and stable thread gripper.

Front and Rear Feed Dog Minute Adjustment
[Patent] Synchronization or forward / reverse differential of front and rear feed dog this part can be adapted by the brand new parallel adjustable feed dog control knobs. Furthermore, the indicator scales is easy for user to adjust the feeding precisely, which improves ease of operation greatly.

GENERAL SEAMING / BOTTOM HEMMING

Basic model of interlock sewing machine with double side cover-stitching. It is available for various sewing by optional devices. Such as plain seaming and bottom hemming for underwears, sportswears, etc. (equipped with adjustable hemming set)
W122 : Light / Medium / Heavy Material Multi-function
W162 : High needle bar stroke

CH-4M［4 in 1］
GENERAL SEAMING / BOTTOM HEMMING /SEAM COVERING (Fold-down Type) /TAPE BINDING

4-in-1 model for multifunctional and efficient production with lower cost.

OPTIONAL DEVICE

UTP , UTQ , UTR , UTS , CLA , CMR , CAR/UTP , CAR/UTQ

BOTTOM HEMMING WITH LEFT SIDE FABRIC TRIMMER

Left hand side fabric trimming before hemming. For sleeve opening and bottom of underwears, T-shirt, or sportswears, etc…

APPLICABLE SPEC.

W812 , U812

OPTIONAL DEVICE

UTP , UTQ , UTR , CL , CMR , CAR/UTP , CAR/UTQ

CQ:TAPE BINDING

For tape binding on openings of leg or neck of underwears , T-shirts , etc…
Remark : Binder’s opening size is 1-3/8″ wide and finished size is 1/2″ wide in three folds.

OPTIONAL DEVICE

CLA,FA

OVERLOCK-SEAM COVERING STITCH

CC Fold-down type :
For 4-thread overlock-seam covering stitch W322A is dual-purpose specification, which is with W122’s needle plate, feed dog and CH set.

CE Flattening type :
For 3-thread overlock-seam covering stitch,and an extra guide of overlock-seam (CC specification, fold-down type) is included in the accessory box.

OPTIONAL DEVICE

UTP , UTQ , UTR , UTS , CLA , CMR , CAR/UTP , CAR/UTQ

FOUR-NEEDLE FLAT SEAMING

For flat seaming 2 pieces of fabric. Equipped with fabric guide for easy operation.

OPTIONAL DEVICE

UTQ , UTS , CL , CMR , CAR/UTQ

FFC

ELASTIC / LACE ATTACHING WITH RIGHT SIDE FABRIC TRIMMER

Top feeding devices ensure even length and tension controlled by electric digital controller, with right side fabric trimmer for elastic or lace attaching smoothly and properly on women’s underwears.

FFC : Mechanic type tape feeding.
FE : Simple electric type tape feeding.
SMK : Electric metering type tape feeding
SMK1-C-01 with synchronizer for simple servo motor or clutch motor

SMK1-C-02 Connected to servo motor by encoder cable.

STC : Tension sensor type tape feeding

STC1-U-01 with synchronizer for simple servo motor or clutch motor
STC1-U-02 Connected to servo motor by encoder cable

OPTIONAL DEVICE

CL , LF-A , LS-A , CSA , CSB

TUBULAR JACQUARD ELASTIC WAISTBAND ATTACHING WITH RIGHT SIDE FABRIC TRIMMER

For tubular elastic or lace waistband attaching on men’s or women’s brief, with right hand side fabric trimmer to increase sewing quality and efficiency.

*1: Pneumatic thread chain cutter, including fabric waste suction set.
*2: Electric thread chain cutter, an optional suction motor (CSA or CSB) is required.

OPTIONAL DEVICE

CL* , CAR/UTQ , CMR , CSA , CSB

*CL rear puller is recommended to improve sewing stability.

CHP (CRL 163) Pneumatic Hemming

CY (CRL178-A) Pneumatic Tubular Elastic Tape Hemming

[2 IN 1] PNEUMATIC HEMMING / TUBULAR ELASTIC TAPE HEMMING WITH LEFT SIDE FABRIC TRIMMER

With pneumatic driving folder to fold fabric and insert elastic smoothly, left hand side fabric trimming before hemming increases sewing quality & efficiency. For hemming sleeve opening and bottom of underwears, T-shirts, or sportswears, etc…

APPLICABLE SPEC

W821, W822, W823, U821, U822, U823

OPTIONAL DEVICE

CL* , RL , UTQ , CMR , CAR/UTQ

*CL rear puller is recommended to improve sewing stability.

RLQ

3-Fold (CZ01K,CZ03K)

2-Fold (CZ21K,CZ22K)

TUBULAR ELASTIC WAISTBAND ATTACHING CZ:PNEUMATIC TYPE / CZP: MANUAL TYPE

Attaching tubular elastic tape onto waistband, suitable for briefs. With auto-trimming and tubular extending roller can increase sewing quality and efficiency.
Remark : Two-fold fabric guider is standard, three-fold fabric guider is optional.

MODEL	OPTIONAL DEVICE
CZ	CL* , UTP , UTQ , CMR , CAR/UTP , CAR/UTQ

*CL rear puller is recommended to improve sewing stability.

ELASTIC HEMMING

Elastic hemming evenly length and elasticity is controlled by tape feeding device. Great for seam covering with two or three plies hemming binder on elastic for waistband or leg opening of briefs and shorts, etc.…

CFC : Mechanic type tape feeding

SMK : Electric metering type tape feeding

SMK1-D-01 with synchronizer for simple servo motor or clutch motor
SMK1-D-02 Connected to servo motor by encoder cable

STC : Tension sensor type tape feeding

STC1-B-01 with synchronizer for simple servo motor or clutch motor
STC1-B-02 Connected to servo motor by encoder cable

OPTIONAL DEVICE

FH , CL*

*CL rear puller is recommended to improve sewing stability.

FFT TOP FEEDING FUNCTION

Back and forth moving feed dog is designed by patent and improved mechanism. The effective feeding stroke is bigger, and fabric feeding is more stable.

OPTIONAL DEVICE

UTP , UTR
