Features

Forced Oil-return System

Unique-seal Design
PREVENT-OIL-STAIN DESIGN
The technology ensures long-term and high-speed operation of the machine; Meanwhile, the machines maintain proper performance and mechanical durability.


VIBRATION-FREE DRIVING MECHANISM
The unique vibration-free driving mechanism helps reducing operators’ fatigue for stable productivity and quality.
1.Suitable for both thick and thin materials
The unique crank-link needle-bar mechanism allows you to sew with peace of mind and smoothly. Whether it is women’s ultra-thin stockings or as thick as the crotch of sports pants, the effect is uniform and beautiful.
2.Excellent sewing results
Stability can also be ensured during continuous long-term sewing, and needle breakage and thread skipping are rare.
3.Absolutely low noise and minimal vibration, durable
Unique drive transmission system minimizes noise and vibration. Therefore, unstable operation accidents caused by operator fatigue are greatly reduced, work efficiency is improved, and the products are more uniform! At the same time, the noise and minimal vibration are lower, the machine wear is reduced, and the machine is naturally more durable!

Button-type Adjustment of Stitch Length
Simple and fast.

Upper looper on The Right Side
For easier and safer handling.

External Thread Tensioner
The function is smoother for threading and feeding.

Rear Needle Guard is Driven Independently
Prevent broken needles and skipping stitch.

Differential Feed as Standard
No wave stitching effect.

Standard Length: 180mm
Extra-long style length: 280mm

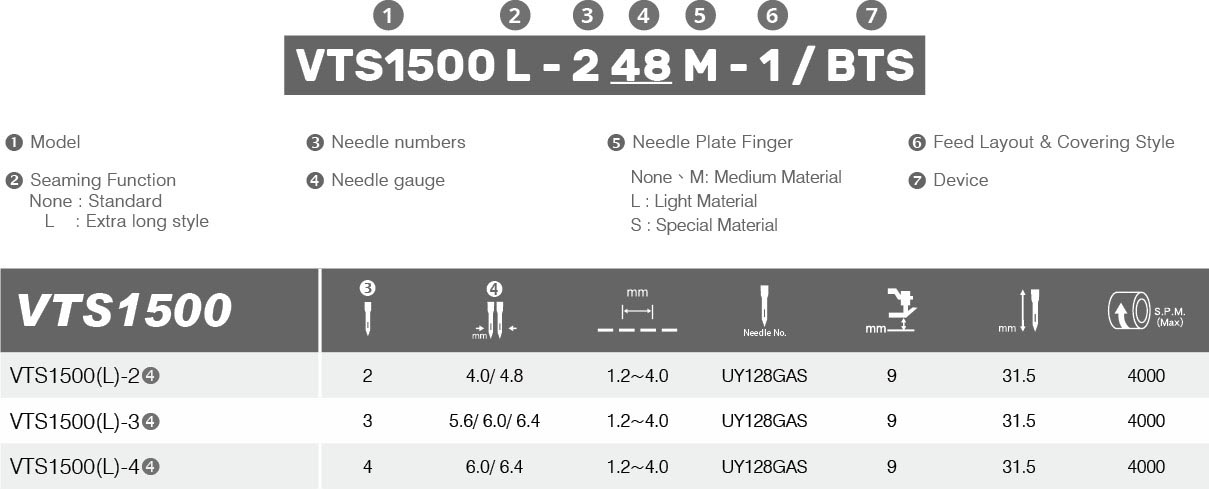

FEED LAYOUT & COVERING STYLE

None: overlock-seam covering(fold-down type)
1: overlock-seam covering(flatting type)
2: bottom hemming

Optional
Device | Applicable Gauge | |
BTS | Pneumatic Type Built-in Thread Trimmer | 240/ 248/ 256/ 264/ 340/ 348/ 356/ 364/ 460/ 464 ( Standard type only) |
ATS | Pneumatic Thread Trimmer | 240/ 248/ 256/ 264/ 340/ 348/ 356/ 364/ 460/ 464 |
ETS | Solenoid Type Thread Trimmer | 240/ 248/ 256/ 264/ 340/ 348/ 356/ 364/ 460/ 464 |
